Gold Melting Tilting Furnace 10 kg to 60 kg Gold/Silver

SHAPET INDUCTION CO. have much years’s experience with precious metals sector thus developed this induction system for Jewelry manufacturers and goldsmiths. It runs on Induction principle, Absolute homogeneous alloying and uniform metal distribution with reduction in metal losses is achieved due to uniform temperature controlling which avoids the skin effect in SHAPET Induction Systems.

SHAPET Induction system is available in different capacities 10 Kg to 60Kg for your convenience of better melting. Both this systems have capability to work in auto mode or manual mode for the convenience of melting and temperature controlling. As chilling unit is standard equipment

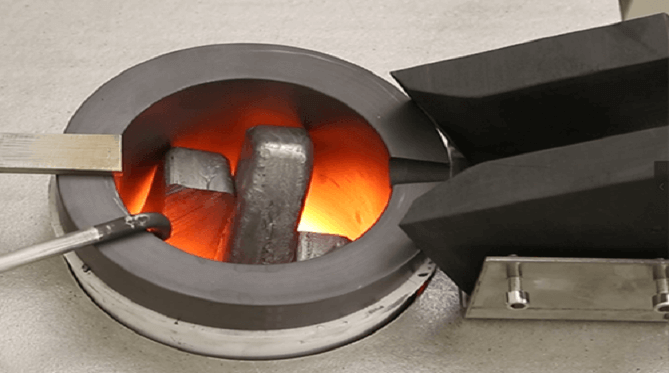

SHAPET Induction system, the metal heats with the help of frequency and so there is no loss of heat and metal. In this method there is auto stirring without the need of carbon rod resulting in no loss of metal which remains pure during the entire process.

Specifications
Power Supplier Three Phase
Voltage 440 V AC
Absorbed Power 10 kW to 40kw
Capacity of Crucible 10 kg to 60 kg (24 Carat Gold)
Maximum Temperature 1200° C
Melting Time 15 min max
Temperature Measurement Automatic
Cooling Water Temperature 35° C max
Water Pressure 6 bar
Maximum Water Flow 8 lit / min
† Brimful Capacity   †† Under Standard Condition
Dimensions (mm) L x B x H
Tilting Unit 670.00 x 530.00 x 900.00
Chilling Unit 840.00 x 590.00 x 105.00
Furnace Unit 590.00 x 840.00 x 1130.00
Width (kg - Approx)
Tilting Unit 58 Net
Chilling Unit 135 Net
Furnace Unit 90 Net
Benefits
Safe & Easy Operation
Continues Melting Of Metal with Chilling Plant
Convenient Layout
Perfect Mixing Of Alloy Due To Auto Stirring
Economical and Efficient In Operation
Increased Productivity
40% Income Tax Depreciable Under Energy Saving
100% Flameless Device Technology
Highlights

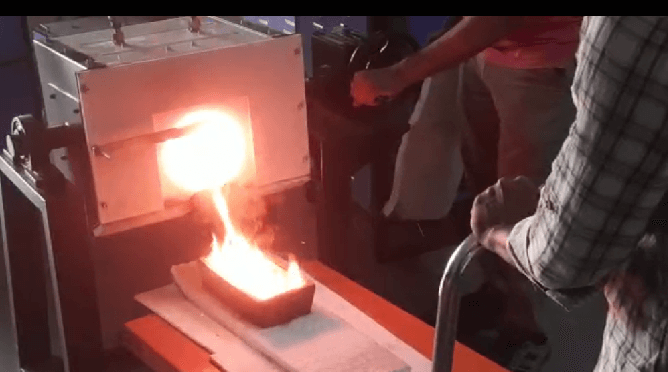

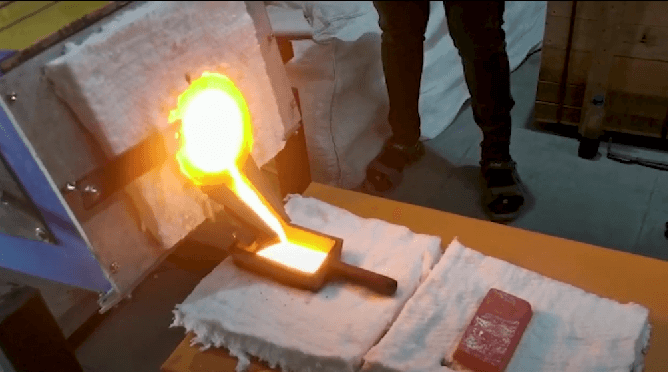

Fully Automatic Control With Tilting Unit
Automatic Power Regulation With Touch Control
Easy To Install
Feather Touch Controls; Simple In Operation
All Safety Precautions Provided
Heat and Power Loss Reduced
Less Power Consumption
Reduce Metal Loss
Melting Time 10 to 15 Minute
