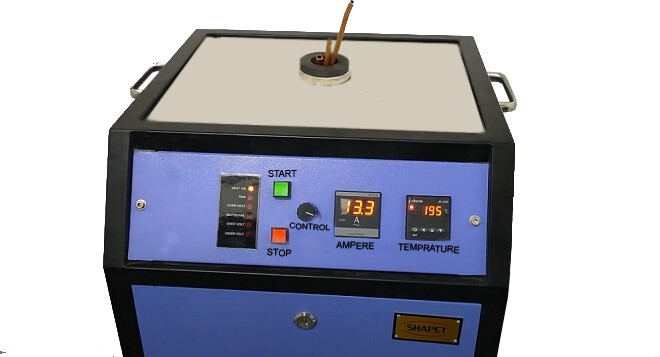

SHAPET INDUCTION CO. have much years experience with precious metals sector thus developed this induction system for Jewelry manufacturers and goldsmiths. It runs on Induction principle, Absolute homogeneous alloying and uniform metal distribution with reduction in metal losses is achieved due to uniform temperature controlling which avoids the skin effect in SHAPET Induction Systems.
SHAPET Induction system is available in different capacities 500GMS to 2Kg for your convenience of better melting. Both this systems have capability to work in auto mode or manual mode for the convenience of melting and temperature controlling. As chilling unit is standard equipment

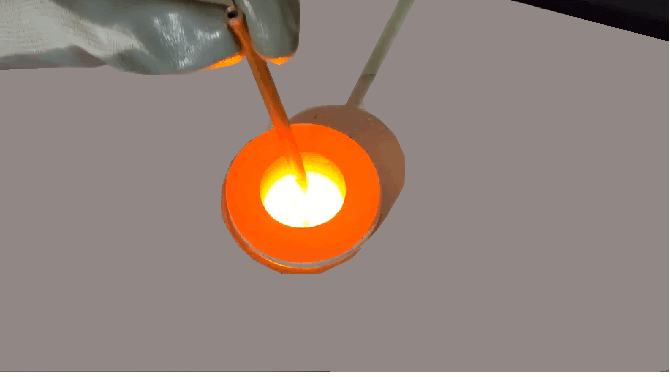

SHAPET Induction system, the metal heats with the help of frequency and so there is no loss of heat and metal. In this method there is auto stirring without the need of carbon rod resulting in no loss of metal which remains pure during the entire process.
| Specifications |
| Power Supplier |
Single Phase |
| Voltage |
230 V AC |
| Absorbed Power |
3.7 kVA to 5 kVA |
| Capacity of Crucible |
500 gm, 1 kg & 2 Kg (24 Carat Gold) |
| Maximum Temperature |
1200° C |
| Melting Time |
7 to 8 min. |
| Temperature Measurement |
Digital (K - Type) |
| Cooling Water Temperature |
19° C to 35° C |
| Water Pressure |
2.5 bar |
| Maximum Water Flow |
3 lit/min |
| † Brimful Capacity †† Under Standard Condition |
| Dimensions (mm) L x B x H |
| Chilling Unit |
440.00 x 440.00 x 565.00 |
| Induction with chiller |
440.00 x 440.00 x 1045.00 |
| Furnace Unit |
440.00 x 440.00 x 480.00 |
| Width (kg - Approx) |
| Chilling Unit |
45 Net |
| Induction with chiller |
81 Net |
| Furnace Unit |
36 Net |
| Benefits |
| Safe & Easy Operation |
| Continues Melting Of Metal with Chilling Plant |
| Convenient Layout |
| Perfect Mixing Of Alloys Due To Auto Stirring |
| Economical and Efficient In Operation |
| Increased Productivity |
| 40% Income Tax Depreciable Under Energy Saving |
| 100% Flameless Device Technology |
| Highlights |
| Fully Automatic Control |
| Automatic Power Regulation |
| Easy To Install |

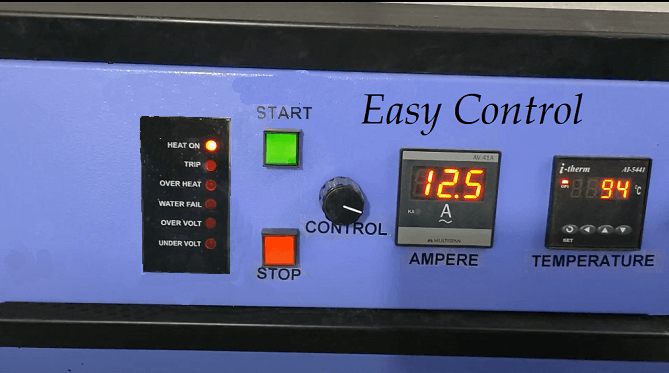

| Feather Touch Controls; Simple In Operation |
| All Safety Precautions Provided |
| Heat and Power Loss Reduced |
| Less Power Consumption |
| Reduce Metal Loss |
| Melting Time 7 to 8 Minute |
